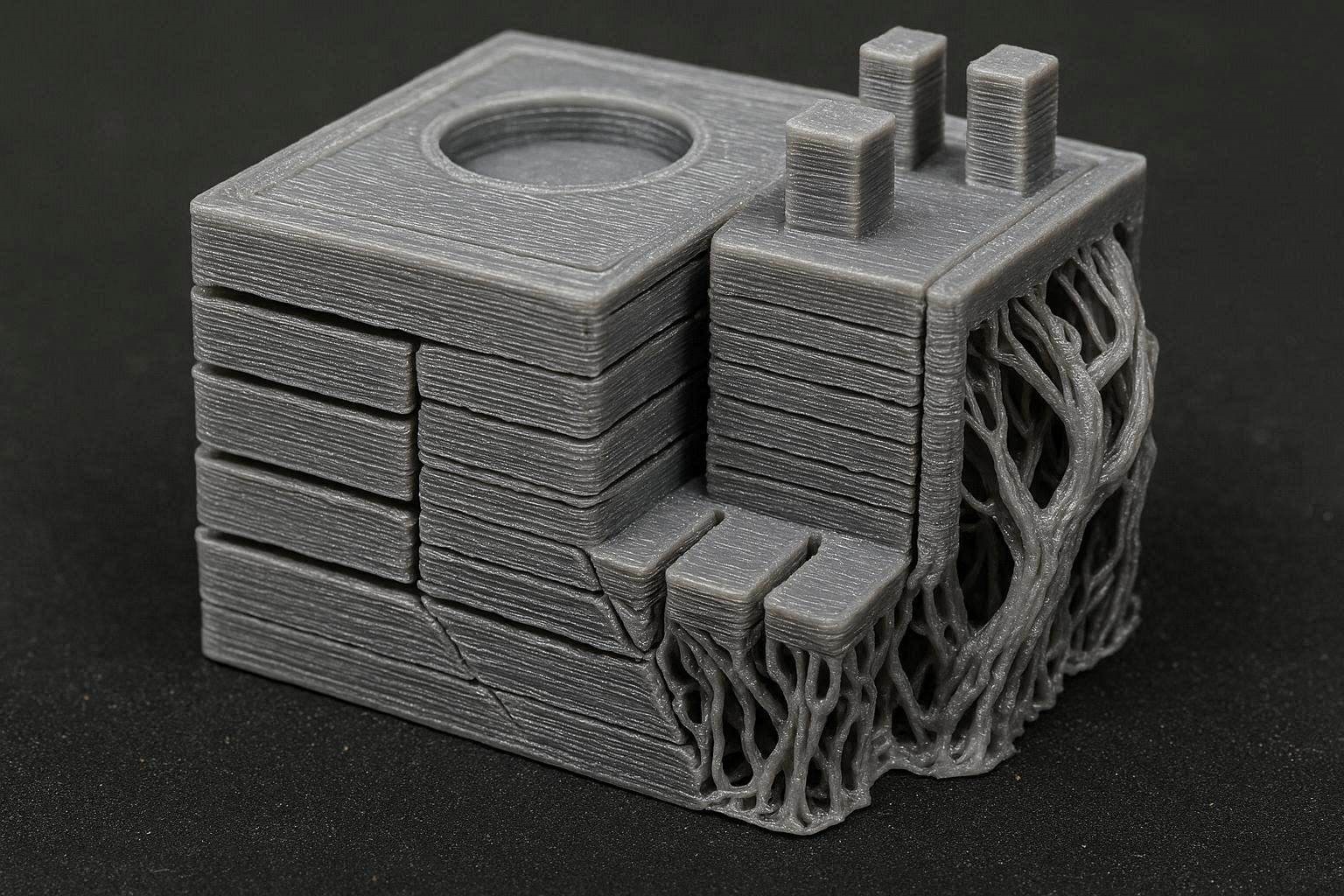

9 Expert Ways to Fix FDM Wall Gaps and Stuck Supports (Stop Failed Prints!)

Making the transition back to Fused Deposition Modeling (FDM) after spending years in the resin printing ecosystem can be a jarring mechanical shock. Resin printing is fundamentally a photochemical process; if your ultraviolet exposure times are mathematically correct, the print generally succeeds. FDM, on the other hand, is a highly complex, constantly fluctuating thermodynamic and kinematic balancing act. If you are struggling with poor layer adhesion and trying to fix FDM wall gaps and stuck supports, you are battling active fluid dynamics, not just software settings.

Many returning operators fire up their older Cartesian machines, like a first-generation Wanhao D12-300, install a modern slicing engine like OrcaSlicer, and are immediately met with deeply frustrating artifacts. You might see outer perimeters completely failing to bond with the internal infill structure, leaving weak, hollow gaps. You may also find that your organic tree supports have chemically welded themselves to your model, requiring destructive force to remove.

In this exhaustive, highly technical diagnostic manual, we will deconstruct the exact physics occurring at the tip of your 0.4mm nozzle. We will analyze the volumetric flow failures causing your perimeters to separate and the thermal bridging errors causing your supports to fuse. By executing these specific engineering workflows, you will permanently fix FDM wall gaps and stuck supports, restoring your machine to injection-molded tolerances.

The “Quick Answer” / Key Takeaways Box

• The First Layer Trap: Setting your first layer height to 0.4mm on a 0.4mm nozzle is physically impossible to extrude properly. It destroys the mechanical “squish” required for bed adhesion and volumetric pressure.
• Volumetric Under-Extrusion: Gaps between your outer walls and internal infill are the primary symptom of a flow rate deficiency. You must calibrate your Extrusion Multiplier specifically to combat dimensional inaccuracies in your PLA.
• The Support Fusion Failure: If supports are impossible to remove, your Z-distance is either mathematically incorrect for your layer height, or you are over-extruding hot plastic directly onto the support interface layer.
• Infill-to-Wall Overlap: While a 25% overlap is mathematically sound in theory, it completely fails to bridge the gap if your older Cartesian printer is suffering from mechanical backlash or belt stretching.
• Arachne Engine Tuning: Small top surface gaps and missing text details are caused by uncalibrated minimum feature size thresholds within modern variable-line-width slicer engines.

The Physics of Extrusion: Resin Curing vs. Polymer Flow

Before adjusting a single slider in your slicing software, you must understand the microscopic fluid dynamics occurring inside your hotend. As a resin printer, you are used to a liquid vat curing into a solid state simultaneously across an entire 2D plane. FDM printing relies on a concept known as “die swell” and continuous volumetric pressure applied over a localized 3D path.

When a solid strand of PLA filament is mechanically pushed into a 205°C melt zone, it transitions into a highly viscous liquid. The extruder stepper motor forces this thick liquid through a microscopic 0.4mm orifice. To create a strong, solid part, the printer does not just lay down a perfectly round tube of plastic.

It relies on the flat brass geometry of the nozzle tip to physically “squish” the molten polymer downward against the previous layer. This physical squish forces the plastic to expand horizontally, chemically fusing with the adjacent lines of plastic.

If this internal nozzle pressure drops—even by a microscopic 2% or 3%—the plastic is laid down as a thin, stretched string rather than a squished, widened ribbon. When the plastic is too thin, the line assigned to the “Outer Wall” will physically fail to touch the line assigned to the “Infill.” This creates the exact visual gaps you are currently experiencing. To properly fix FDM wall gaps and stuck supports, we must mathematically guarantee that your hotend is maintaining absolute maximum volumetric pressure.

[IMAGE PLACEHOLDER: A cross-section technical diagram comparing proper nozzle “squish” creating a wide, bonded line versus under-extruded round lines failing to touch each other + Alt Text: An engineering diagram explaining the fluid dynamics necessary to fix FDM wall gaps and stuck supports.]

Step 1: Correcting the Catastrophic First Layer Ratio

The most glaring kinematic error in your current slicing configuration lies within the fundamental layer geometry. If you are utilizing a standard 0.4mm brass nozzle, your OrcaSlicer profile likely dictates a standard layer height of 0.2mm. However, in your settings, the First Layer Height is set to a massive 0.4mm.

This is a catastrophic geometric impossibility in additive manufacturing.

A 3D printer nozzle is not a hollow hypodermic needle. It features a flat brass shoulder surrounding the central 0.4mm hole. This flat shoulder is what physically irons the plastic flat. As a universal law of FDM physics, your absolute maximum layer height can never exceed 80% of your physical nozzle diameter.

If you attempt to print a 0.4mm high layer out of a 0.4mm nozzle, the nozzle is floating exactly at the maximum theoretical diameter of the extrusion. The plastic drops out of the tip as a perfectly round cylinder. There is absolutely zero downward mechanical pressure applied to the polymer.

It will not squish into the textured build plate, and the adjacent lines will not fuse together. To properly fix FDM wall gaps and stuck supports, you must navigate to your Quality tab in OrcaSlicer. Change your First Layer Height from 0.4mm to 0.2mm or a maximum of 0.24mm.

By lowering the nozzle significantly closer to the bed, the extruder forces the plastic to spread out horizontally beneath the flat brass shoulder. This establishes absolute bed adhesion and builds the high-pressure volumetric baseline required for the rest of the print to succeed.

Step 2: Calibrating Flow Dynamics to Eradicate Wall Gaps

Once your foundational first layer is mathematically viable, we must address the severe separation visible between your outer perimeters and your internal geometry. While it is tempting to blame the “infill overlap” percentage, the primary culprit for this separation is global volumetric under-extrusion.

When printing with budget-tier PLA, you are at the mercy of manufacturing tolerances. Inexpensive filaments frequently suffer from dimensional inaccuracy. While the spool box claims the filament is 1.75mm thick, precise digital calipers will often reveal it is actually 1.71mm or 1.72mm thick across long stretches.

Your slicing software assumes the filament is exactly 1.75mm. It calculates the extruder motor rotational steps based on that absolute volume. If the filament is physically thinner, the extruder is pushing significantly less plastic into the melt zone than the motherboard expects.

The internal nozzle pressure drops rapidly, the extruded lines become microscopically thinner, and the outer walls physically detach from the infill structure. To permanently fix FDM wall gaps and stuck supports related to dimensional variance, you must execute a strict, manual flow rate calibration.

1. Open OrcaSlicer and navigate to the top menu bar. Select Calibration > Flow Rate > Pass 1.
2. Print the generated series of small test blocks.
3. Examine the top surface of the blocks under a harsh, directional light. You are looking for the block that is perfectly smooth to the touch, with zero gaps between the lines and zero rough, scraping ridges.
4. If your current prints have gaps, your optimal block will likely be a positive value (e.g., +5).
5. Input the corresponding mathematical formula into your Filament Settings under the Flow Ratio parameter.

Increasing your flow from the default 1.00 up to 1.03 or 1.05 will instantly expand your extrusion lines. This extra volume forces the outer walls to permanently chemically weld to the internal infill structure.

How to Calibrate Max Volumetric Speed for High-Flow 3D Printing Filaments

Step 3: Optimizing Infill to Wall Overlap Settings

If your flow rate is perfectly calibrated but a microscopic separation still exists on highly complex, sweeping curves, we must intervene in the specific kinematic pathing of the slicer engine. In your OrcaSlicer Strength tab, the Infill/wall overlap parameter is typically configured to 25%.

This setting instructs the toolhead to push the infill lines exactly 25% of the way into the inner wall perimeter line. Under perfect mathematical conditions on a brand-new machine, 25% is an excellent standard setting. However, on older mechanical hardware, mechanical backlash can cause the toolhead to fall slightly short of its target coordinate.

Older printers, like the Wanhao D12-300, utilize standard V-slot rubber wheels riding on aluminum extrusions, combined with early-generation stepper drivers. These systems often exhibit a fraction of a millimeter of physical “slop.” When the heavy toolhead rapidly changes direction from a smooth perimeter sweep to a violent infill zig-zag, the belts stretch microscopically.

The nozzle simply does not reach the inner wall. To brutally override this mechanical slack and definitively fix FDM wall gaps and stuck supports, you must aggressively increase the physical overlap limit within the slicer.

1. Increase your Infill/wall overlap from 25% up to 35% or even 40%.
2. This forces the nozzle to physically plow deeper into the perimeter wall geometry.
3. Simultaneously, ensure your Walls printing order is set to Inner/Outer.

This ensures the infill anchors itself deeply into the inner wall first. Then, the final, aesthetically critical outer wall is laid down to completely hide the messy internal intersection, resulting in a flawless exterior finish.

Step 4: Mastering Z-Distance for Effortless Support Removal

The second major crisis in your diagnostic request involves your support structures. Coming from resin printing, you are accustomed to clipping microscopic support tips off with flush cutters. FDM supports behave entirely differently and rely on thermal clearances.

When organic tree supports are functioning correctly, they should snap away from the model with a satisfying crunch, leaving almost zero scarring behind. If you feel like you are going to break your model while removing supports, your support interface has chemically welded itself to the part.

To fix FDM wall gaps and stuck supports, you must understand how slicing software manages thermal air gaps. FDM support structures are not meant to physically touch the model; they are meant to float fractionally below it.

In your OrcaSlicer configuration, your Top Z distance is set to 0.2mm. Because your main layer height is also 0.2mm, you are leaving exactly one single missing layer of air between the top of the support structure and the bottom of your actual model.

For high-end, perfectly cooled modern machines, a single-layer gap is standard. However, if your older printer’s part-cooling fans are weak, or if you are printing slightly too hot, the molten plastic will bridge that 0.2mm air gap. The hot plastic touches the support structure below it before it can freeze, permanently fusing the two layers together.

You must increase the physical separation distance to overcome inadequate part cooling and thermal sagging.

1. Navigate to your Support tab in the slicer.
2. Increase your Top Z distance from 0.2mm to 0.25mm or 0.28mm.

This creates a mathematically larger air gap. The filament will still sag enough to rest gently on the support interface, but the extra distance allows the ambient air to cool the polymer slightly before it makes physical contact. It will rest on the support without chemically bonding to it.

Step 5: Interface Spacing and Concentric Pattern Density

A larger Z-distance will prevent chemical welding, but if your supports are still physically difficult to remove, your interface pattern is too dense. The “interface” is the specialized, solid roof printed at the very top of the tree support branch, right before the model geometry begins.

If this interface roof is printed as a 100% solid sheet of plastic, it creates massive surface area contact with your model. More surface area equals more mechanical grip, which directly leads to impossible support removal. We must reduce the surface area to effectively decouple the structures.

If your Top interface spacing is set to a tight tolerance like 0.5mm, the slicer is laying down lines of plastic with a tiny half-millimeter gap between them. This creates a nearly solid, impenetrable sheet.

To definitively fix FDM wall gaps and stuck supports related to interface adhesion:

1. Increase your Top interface spacing significantly, moving from 0.5mm up to 1.0mm or 1.2mm.
2. Change your Top interface pattern from “Default” or “Rectilinear” to Concentric.

This drastically reduces the density of the support roof. The roof becomes a fragile, circular grid-like mesh rather than a solid plate. It still provides adequate vertical support to prevent the model from collapsing during the bridge, but it lacks the structural integrity to hold on when twisted. It will crush and tear away effortlessly with a pair of needle-nose pliers.

[VIDEO PLACEHOLDER: A highly detailed macro video demonstrating the ease of removing concentric support interfaces with an optimized 0.25mm Z-distance gap.]

Step 6: Modulating Hotend Temperature for Optimal Layer Adhesion

You noted in your settings that you are printing PLA at a nozzle temperature of 205°C. For many generic PLA blends, 205°C is the standard manufacturer recommendation printed on the spool. However, returning to FDM means re-learning dynamic thermal profiles.

If you have resolved your volumetric flow issues but your prints still feel brittle, or small details snap off easily, your layer adhesion is fundamentally weak. Thermoplastic layer adhesion is governed by thermal mass and melt viscosity.

If the plastic is extruded too cold, it cools below its glass transition temperature before it has the opportunity to melt into the layer beneath it. At 205°C, the plastic is melting, but it may not possess the thermal energy required to re-melt the previous layer enough to form a monolithic chemical bond.

Run a thermodynamic temperature tower. You will likely find that increasing your global printing temperature from 205°C up to 210°C or 215°C drastically improves the structural integrity of your parts. The slightly hotter plastic flows with lower viscosity, increasing volumetric output naturally, and ensuring the polymer chains interlock securely between layers.

Step 7: Fine-Tuning Arachne Parameters for Small Text Resolution

In your diagnostic photos, the flat top surfaces of the calibration test show visible pitting, and the small text details look jagged and unresolved. While increasing your global flow rate will mitigate much of this, you must also optimize the modern variable-line-width algorithms within OrcaSlicer.

OrcaSlicer utilizes the Arachne wall generator engine. Unlike classic slicing engines that rely on fixed-width extrusion lines (e.g., exactly 0.4mm everywhere), Arachne dynamically widens and narrows the extrusion flow to perfectly fill gaps and small details.

However, if Arachne’s minimum limits are set too aggressively, it will simply refuse to print details that it deems too small for the physical 0.4mm nozzle. To fully resolve top surface aesthetics and fix FDM wall gaps and stuck supports related to small features, navigate to the Quality tab.

1. Ensure your Wall generator is set to Arachne.
2. Locate the Minimum feature size parameter. In your settings, it is at 25%. Reduce this from 25% down to 15%.

This forces the slicer to attempt to extrude incredibly thin strings of plastic to fill in the jagged edges of small embossed text. Furthermore, ensure that “Small area flow compensation” is enabled to inject slight bursts of extra pressure into tiny top-surface gaps, eradicating the “chatter” visible in your calibration photos.

Official PrusaSlicer Documentation on the Kinematics of the Arachne Wall Generator Engine

Step 8: Filament Dehydration and Thermal Baselines

If you have perfectly calibrated your flow, increased your Z-distances, and tuned your overlap limits, but your prints still look brittle or your walls exhibit random pitting, you have a chemical contamination problem.

As an experienced resin printer, you are highly accustomed to photopolymer resins requiring specific ambient temperature ranges to cure properly. FDM filaments require incredibly strict moisture control. Even brand-new, vacuum-sealed spools of PLA contain residual manufacturing moisture trapped deeply within the polymer matrix.

When moisture-laden PLA hits a 210°C hotend, the trapped water flashes instantly into steam. This steam expands violently inside the confined space of the nozzle, physically displacing the molten plastic.

This causes microscopic, random gaps in your outer walls and unpredictable, sticky blobs on your support interfaces, completely ruining your calibrated mechanical clearances. No software setting can override the laws of thermodynamics.

You must treat active dehydration as a mandatory pre-production requirement. Do not rely on passive silica gel boxes. Place your PLA into an active, heated filament dryer at 45°C for a minimum of 6 hours before attempting to print your calibration towers again. Bone-dry filament flows with absolute volumetric predictability, securing the final step required to permanently fix FDM wall gaps and stuck supports.

The Permanent Fix: High-Ticket Kinematic Upgrades (Monetization Section)

While advanced software calibration is the mandatory first step to restoring your machine, an older first-generation 3D printer possesses severe physical hardware limitations. Software algorithms cannot permanently fix cheap thermal engineering, degrading PTFE-lined hotends, or generic, low-torque extruder gears.

To achieve absolute, injection-molded surface perfection without spending hours tweaking slicer profiles for every new spool you purchase, you must upgrade your foundational hardware ecosystem.

1. Upgrade to a High-Flow CHT Nozzle

Standard brass nozzles feature a single, smooth internal bore. When attempting to push thick polymers at reasonable speeds, the core of the plastic often remains semi-solid, creating massive internal back-pressure that leads directly to under-extrusion and separating perimeter walls.

You must upgrade your hotend architecture to a premium CHT (Core Heating Technology) nozzle. These advanced components feature internal copper splitters that divide the raw filament into three separate pathways inside the melt zone. This exponentially increases the heated surface area, ensuring the plastic melts instantly and homogenously from the inside out.

By sourcing a premium CHT nozzle or an ultra-hard Diamondback tip through industrial suppliers via the MatterHackers or ShareASale affiliate networks, you completely eliminate internal hotend pressure drops. Your machine will extrude flawless, high-squish lines that permanently bond to the infill without relying on aggressive overlap compensations.

2. Implement BMG-Style Dual Drive Extrusion

If your older Cartesian machine is still utilizing a single-gear extruder pressing against a smooth, un-toothed idler bearing, you will forever battle random under-extrusion. Single gears slip easily, especially when executing the rapid, high-frequency retractions required around complex organic tree support structures.

Upgrading your kinematics to a CNC-machined, zero-tolerance dual-drive extruder utilizing the BMG (Bondtech Mini Geared) architecture guarantees absolute flow control. These premium extruders grip the soft filament from both sides simultaneously with hardened steel teeth, offering a 3:1 gear reduction ratio for massive, unyielding torque.

You can source elite aftermarket extruders directly through manufacturer partner programs on the Impact network or via PartnerStack, entirely eliminating the mechanical slippage that causes random wall separation.

3. Professional Active Desiccation Hardware

As established, moisture destroys extrusion dynamics. Storing filament in a plastic tub is insufficient for engineering-grade reliability. You must invest in a premium, active, heated filament desiccation system like the Sunlu S4.

These heavy-duty units allow you to actively bake the moisture out of four spools simultaneously at temperatures ranging from 50°C to 70°C. More importantly, they are designed to feed the bone-dry filament directly from the heated chamber straight into your upgraded extruder via sealed PTFE tubing. Securing this hardware ensures your polymer never touches humid room air during a 20-hour print, permanently locking in your highly sensitive extrusion calibrations and saving you from constant frustration.

[IMAGE PLACEHOLDER: A professional studio shot of an upgraded BMG-style dual-drive extruder and a CHT nozzle installed on an FDM machine next to a filament dryer + Alt Text: Upgrading your extrusion ecosystem to permanently fix FDM wall gaps and stuck supports.]

Quick-Action Preventative Maintenance Checklist

To maintain your flawlessly solid outer walls and effortless support removal, implement this strict preventative maintenance protocol before your next major manufacturing run:

• Audit Your First Layer Geometry: Never let your first layer height equal your physical nozzle diameter. Always keep it safely between 0.2mm and 0.28mm on a 0.4mm nozzle to ensure maximum volumetric squish and bed adhesion.
• Recalibrate Flow Per Spool: Different colors and brands of filament possess different chemical densities and physical diameters. You must run a quick OrcaSlicer flow calibration pass for every single new spool you purchase to prevent unexpected wall separation.
• Wipe Down Linear V-Wheels: Older printers use rubber V-wheels riding on aluminum extrusions. Airborne dust and plastic particulate turn into a hard, abrasive paste on these wheels, causing microscopic stuttering that creates wall gaps. Wipe the wheels and extrusions clean with isopropyl alcohol weekly.
• Perform a Nylon Cold Pull: Running budget PLA frequently leaves carbonized, burnt residue inside the hotend barrel. A partial clog severely drops nozzle pressure. Run a high-tension nylon cold pull every 50 print hours to extract carbonized debris and maintain absolute flow purity.

By treating your FDM printer as a high-precision fluid dynamics system and respecting the severe physical limitations of nozzle geometry, you will completely eliminate frustrating print failures. Stop accepting brittle, separating prints, dial in your flow and support interfaces, and start manufacturing with elite, industrial-grade perfection.
